October 1992: Nuclear Industry South China 249 Bearing Factory (the predecessor of Hewei) was established in Pucheng of Fujian.
June 1995: products were exported to United States
December 1995: approved by ISO9002 Quality Certificate
July 1998: products began to support and match with motor industry
April 2002: moved to Jiuting Development Zone in Songjiang of Shanghai through technological transformation
December 2002: approved by ISO9000 Quality System Certificate
December 2007: began to start up TS16949 System Certificate procedures

No.2039, Laifang Road, Hi-tech Park, Songjiang District
Tel: 021-67697256 (office)
Fax: 021-67697257
¡ö
---Technical Standards ¡ô Your current location£ºhome > Product Introduction

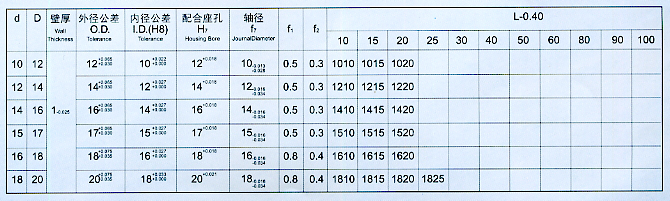

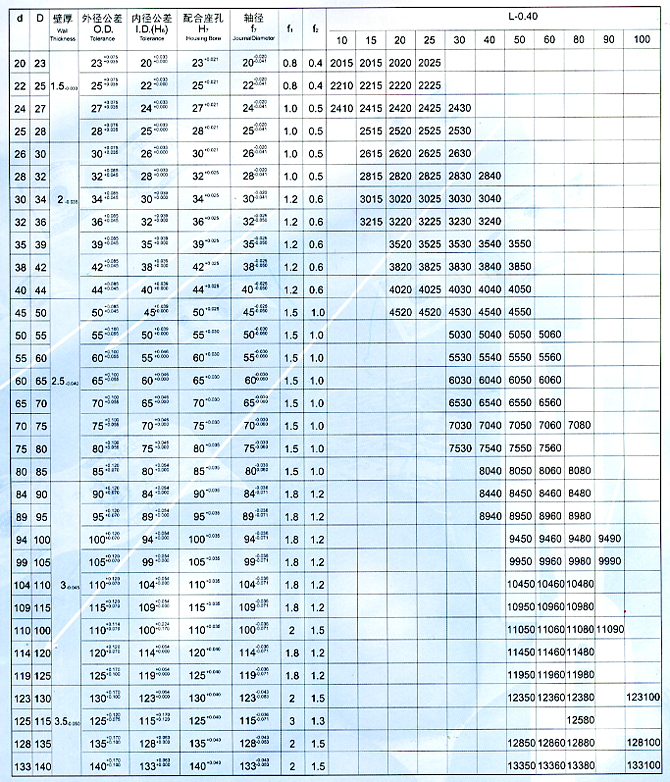

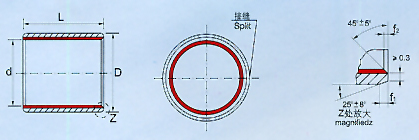

¡ò Sliding bearing standards series size table



Note: the tolerance of inner hole is the tolerance when the spindle sleeve is pressed into the housing at the value of 0.
